Equipment For Sale

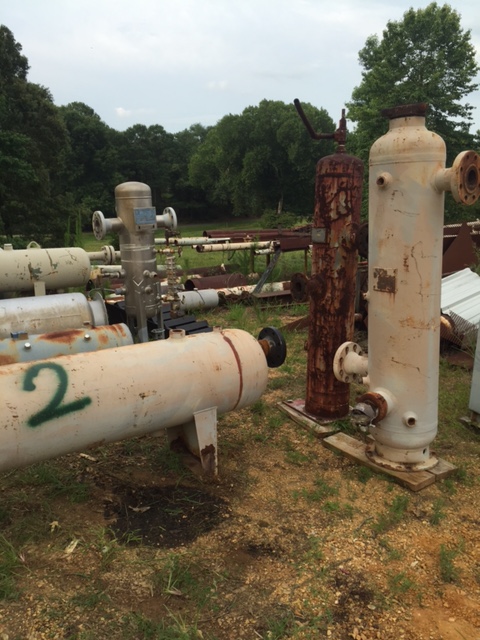

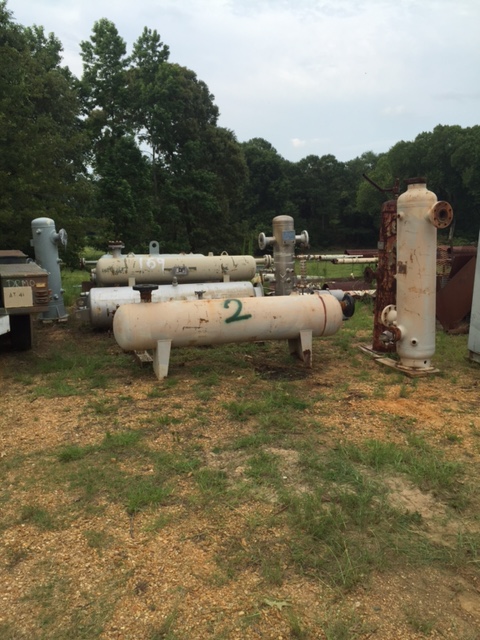

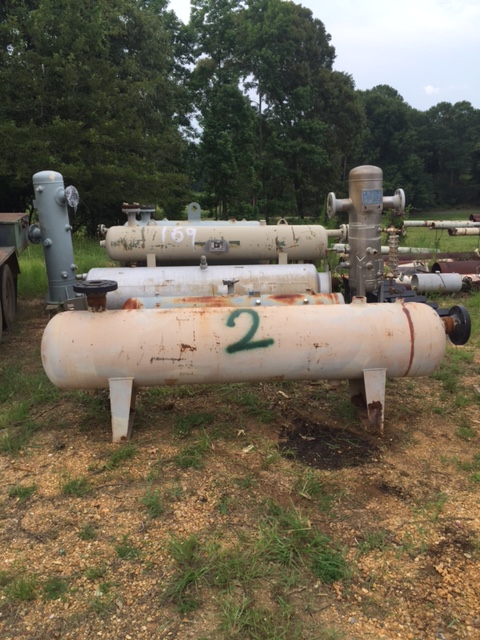

Miscellaneous production vessels. Various working pressures & sizes. Call or email for info.

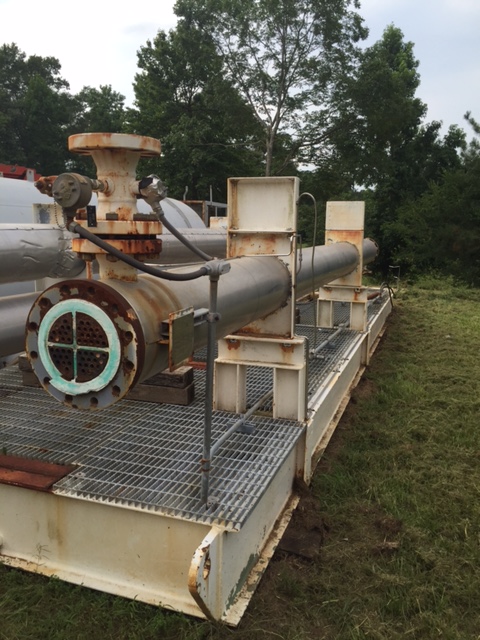

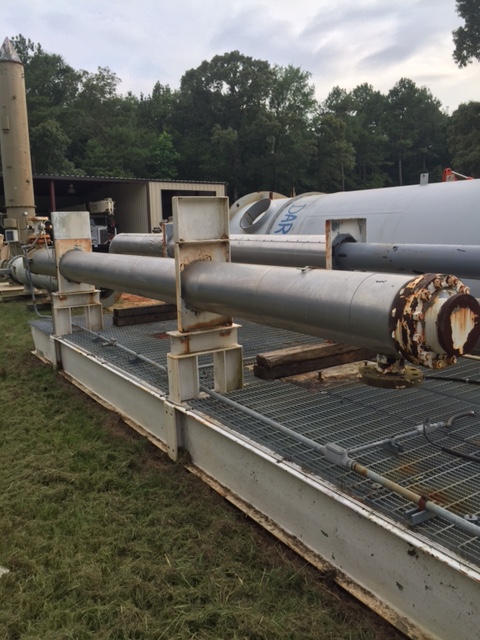

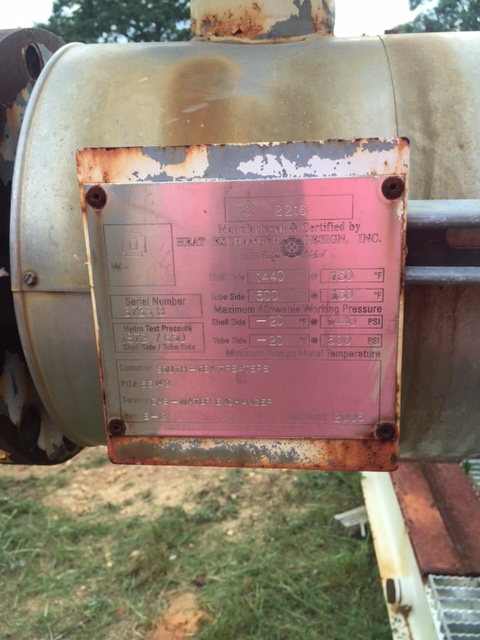

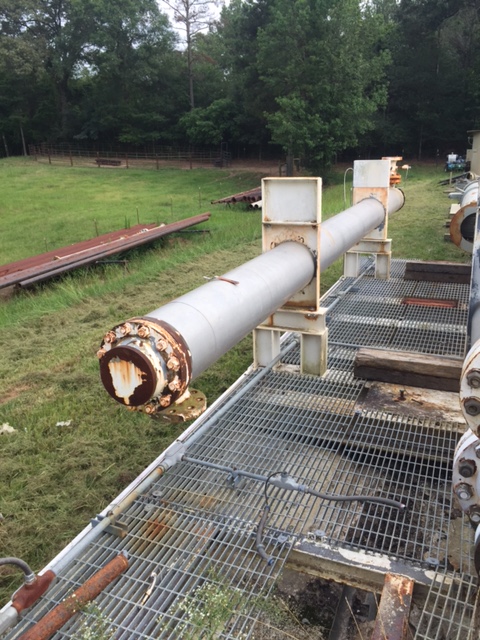

8" Chiller Exchanger. Manufactured by Heat Exchanger Design, Inc. M.A.W.P 1440 shell @ 130^F; 500 tube @ 130^F; Min. rated temp. -20^F.

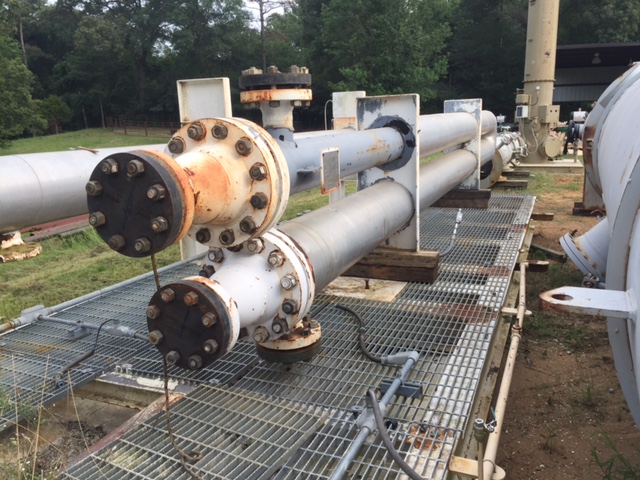

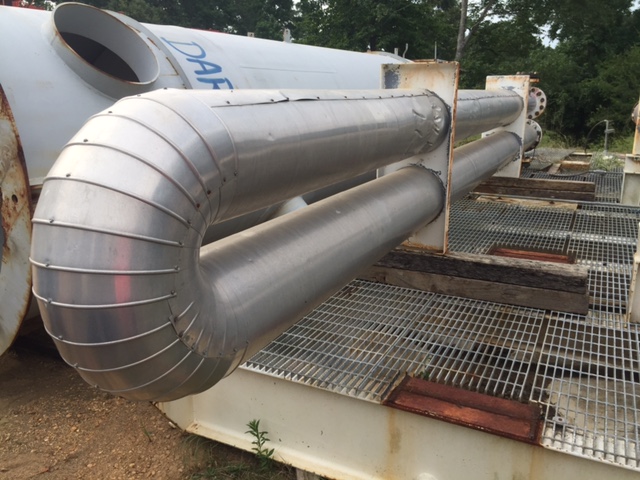

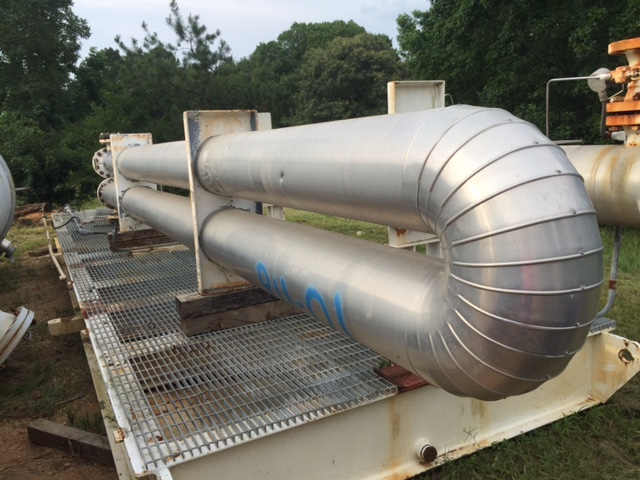

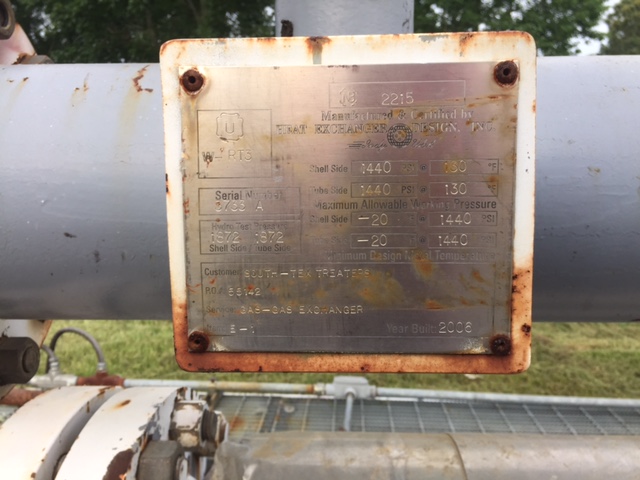

8" Gas to Gas Exchanger. Manufactured by Heat Exchanger Design, Inc. M.A.W.P 1440 shell @ 130^F; 1440 tube @ 130^F; Min. rated temp. -20^F.











Media Bed Vessel. 72" ID x 15' 6" S/S. Manufactured by alberta Custom Pipe Bending & MFG, LTD. M.A.W.P 244 PSI @ 248^F.

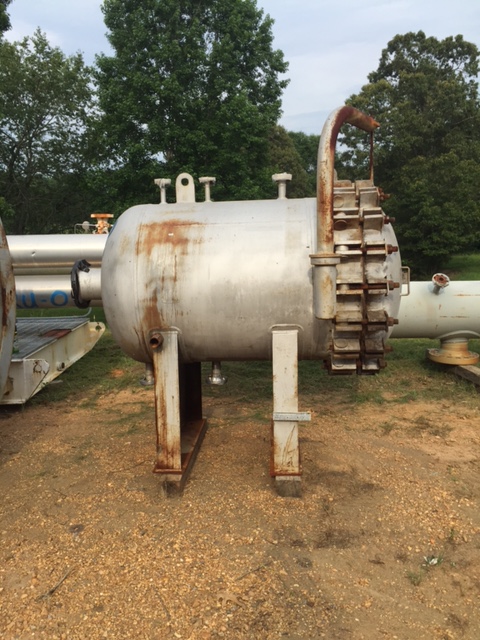

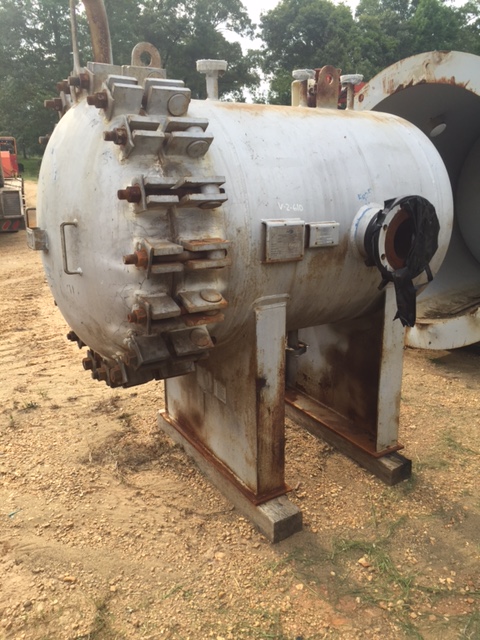

24" Ultisep Filter. Manufactured by Braeside Fabrications, INC. M.A.W.P 1100/FV @ 250^F.

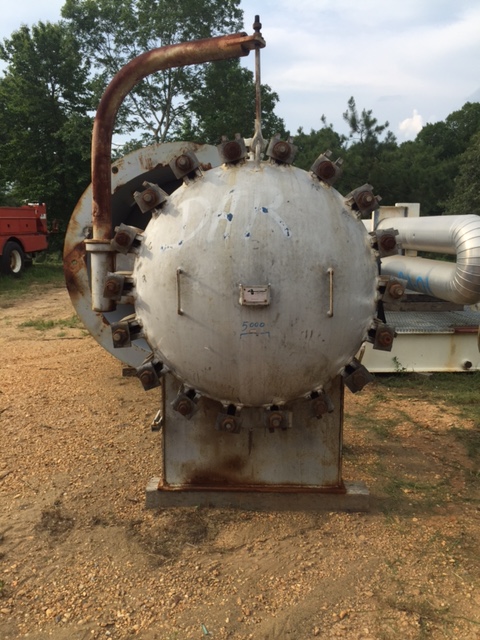

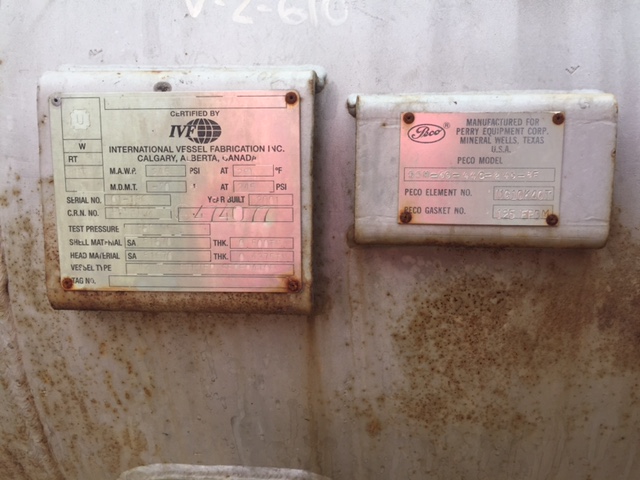

42" Filter Seporator. Manufactured by International Vessel Fabrication. M.A.W.P 245 @ 250^F.

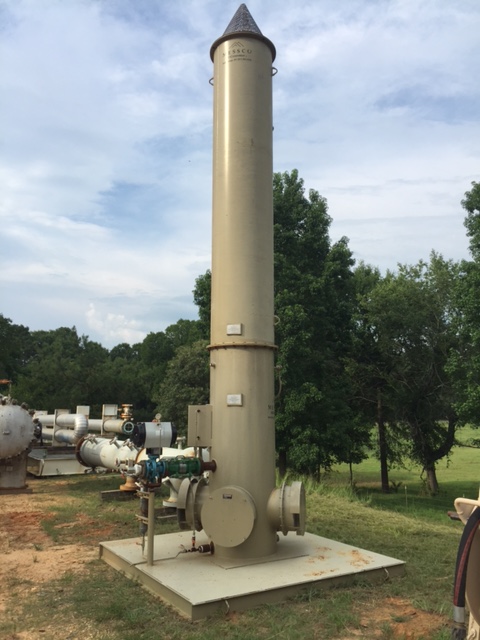

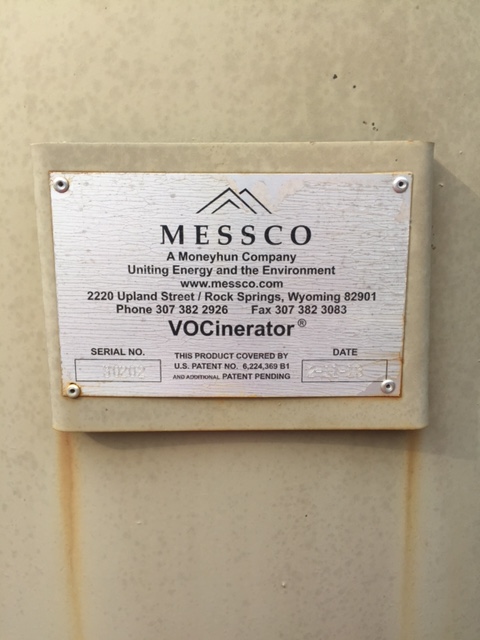

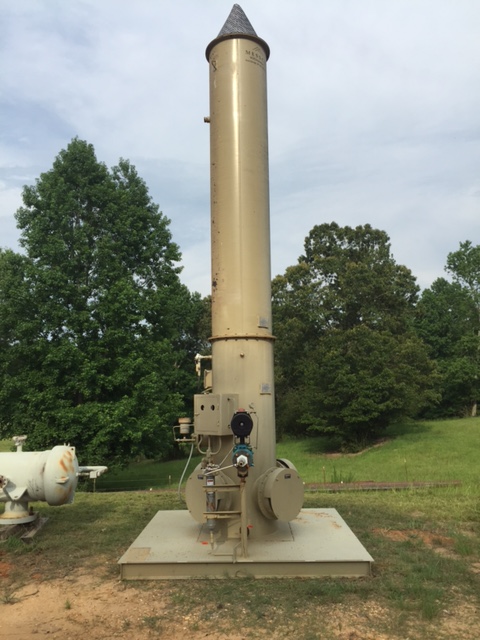

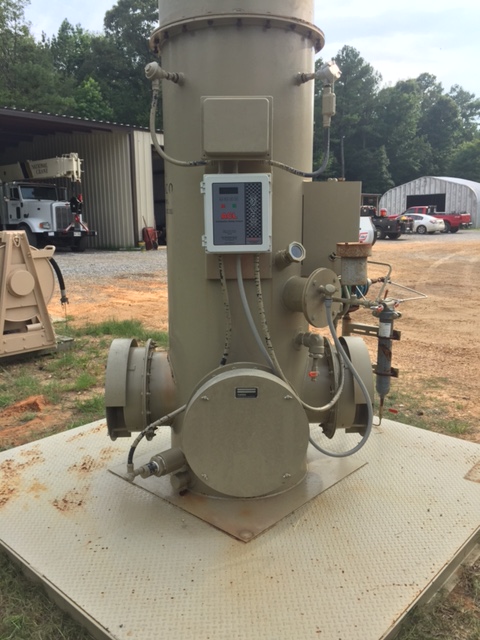

25 MCFD Combustor. New surplus with new ACL BMS.











*NEW*, surplus Ariel KBZ6 compressor package equipped with a 6500 HP electric drive 3 stage. This unit has Ariel factory warranty available. Also, it has NEVER BEEN INSTALLED and is broken down ready to ship. The compressor was packaged by Enerflex in 2013, and is stored indoors under covers. Subject to prior sale.

Ariel KBZ6 – Specifications:

- Baldor 6500hp @900 RPM (Nominal), VFD- capable electric motor.

- An Ariel KBZ-6, six-throw 6.75" stroke, three-stage natural gas compressor.

- Stage 1: Three (3) 15 7/8" dia. Bore, Z-Class cylinders rated at 635# MAWP.

- Stage 2: Two (2) 11" dia. Bore, Z-Class cylinders rated at 1270# MAWP.

- Stage 3: One (1) 10 3/8" dia. Bore, Zl-Class cylinder rated at 1900# MAW.P

- One (1) Variable Column Clearance Pocket for each cylinder.

- Three (3) Air-X-Hemphill 156ZF forced draft Ariel cooler assemblies- one (1) per stage.

- Stage 1 vane pack scrubber: 36" OD x 96" S/S, rated at 655# MAWP.

- Stage 2 vane pack scrubber: 30" OD x 84" S/S, rated at 655# MAWP.

- Stage 3 vane pack scrubber: 24" OD x 72" S/S, rated at 1310# MAWP.

- Enerflex, Allen Bradley ControlLogix PLC control panel c/w accessories.

- Approximate Skid dimensions: 32' W x 50' L x 15' eave H.

- Replace isolation valves with figure 8 spec blinds for calibration of level instrument on       periodic basis typical for all three stages.

- Three (3) Limit switches for all dump valves (stage 1, 2 & 3).

- Four (4) 2"- # 300 Magnetrol level switches (stage 1, 2 & 3).

- Two (2) 2"- #600 Magnetrol level switches.

- One (1) Bently Nevada monitoring system includes the panel, compressor probes and   credit for the Metrix compressor vibration transmitters.

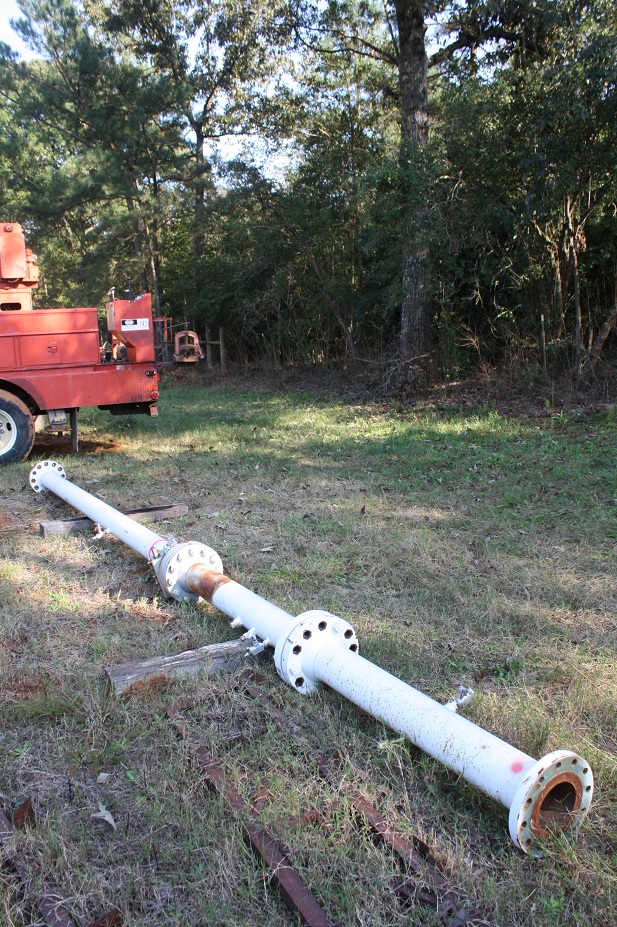

6"/600 Simplex Fitting.  For more information please contact our office at 601-849-9218.

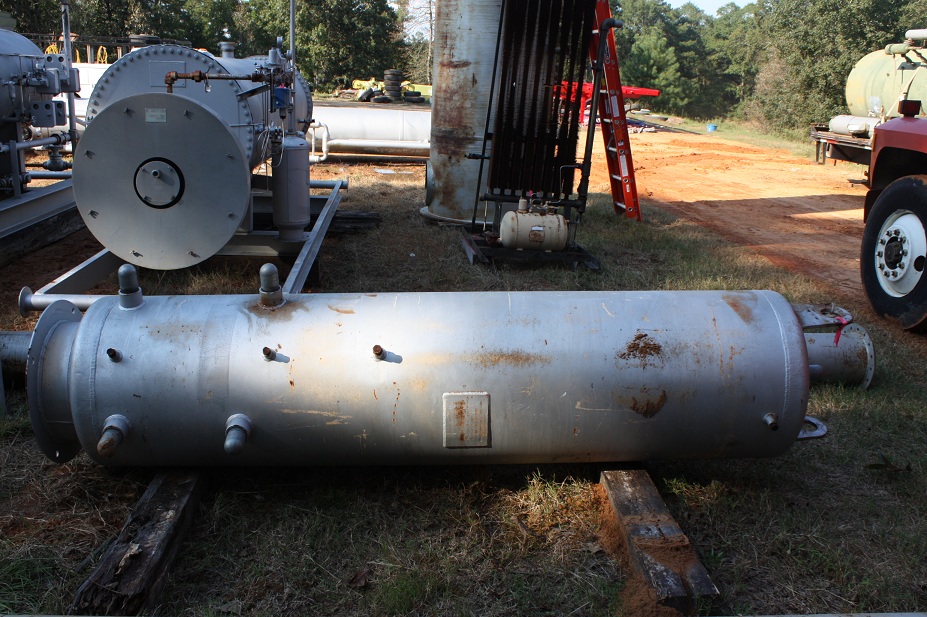

24'X7'6" 3-Phase Low Pressure Seperator. For more information please contact our office at 601-849-9218.
